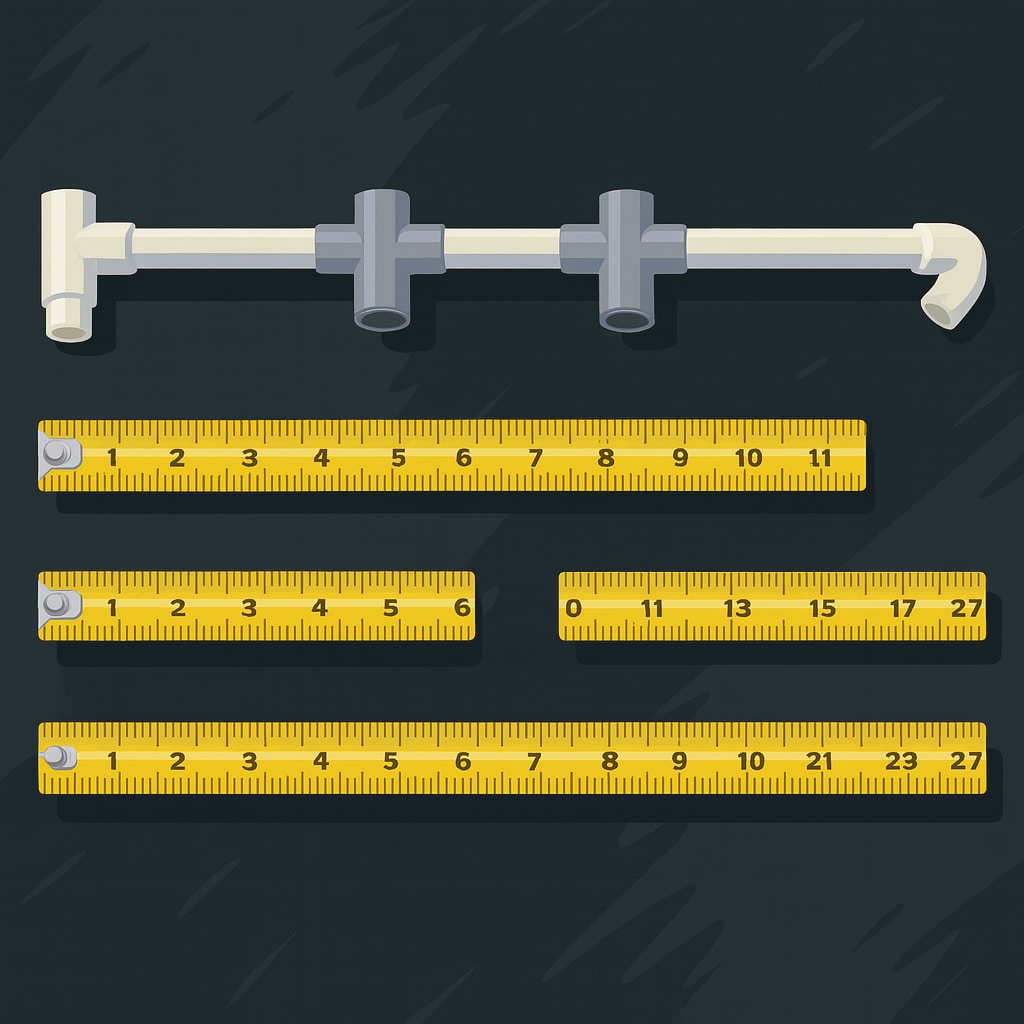

Step 1: Cutting and Assembling the PVC Structure

Begin by cutting two sections of 3/4″ PVC pipe—one measuring 17 ½ inches and the other 7 inches. These will form the main support structure of the antenna (the “boom”) along with the PVC fittings.

To assemble the frame:

• Connect the 17 ½” pipe between the front-facing tee and the first cross fitting.

• Then, insert the 7” pipe between the first and second cross fittings.

• Use PVC glue to secure each connection.

Next, pull the metal tape from the measuring tape case until you reach the internal spring. Rotate and detach the tape from the spring mechanism.

Now, cut the following elements from the metal tape:

• Director: 35 ⅛”

• Driven Elements (2 pieces): 17 ¾” each

• Reflector: 41 ⅜”

Be sure to sand all ends of the tape strips smooth to eliminate sharp edges. Also, sand off about ½” of paint from the underside of both driven elements where wires will later be soldered.

💡 Tip: When mounting the antenna to a mast, ensure the active elements sit forward of the mounting point. Mounting at the center of the boom can reduce Yagi antenna performance.

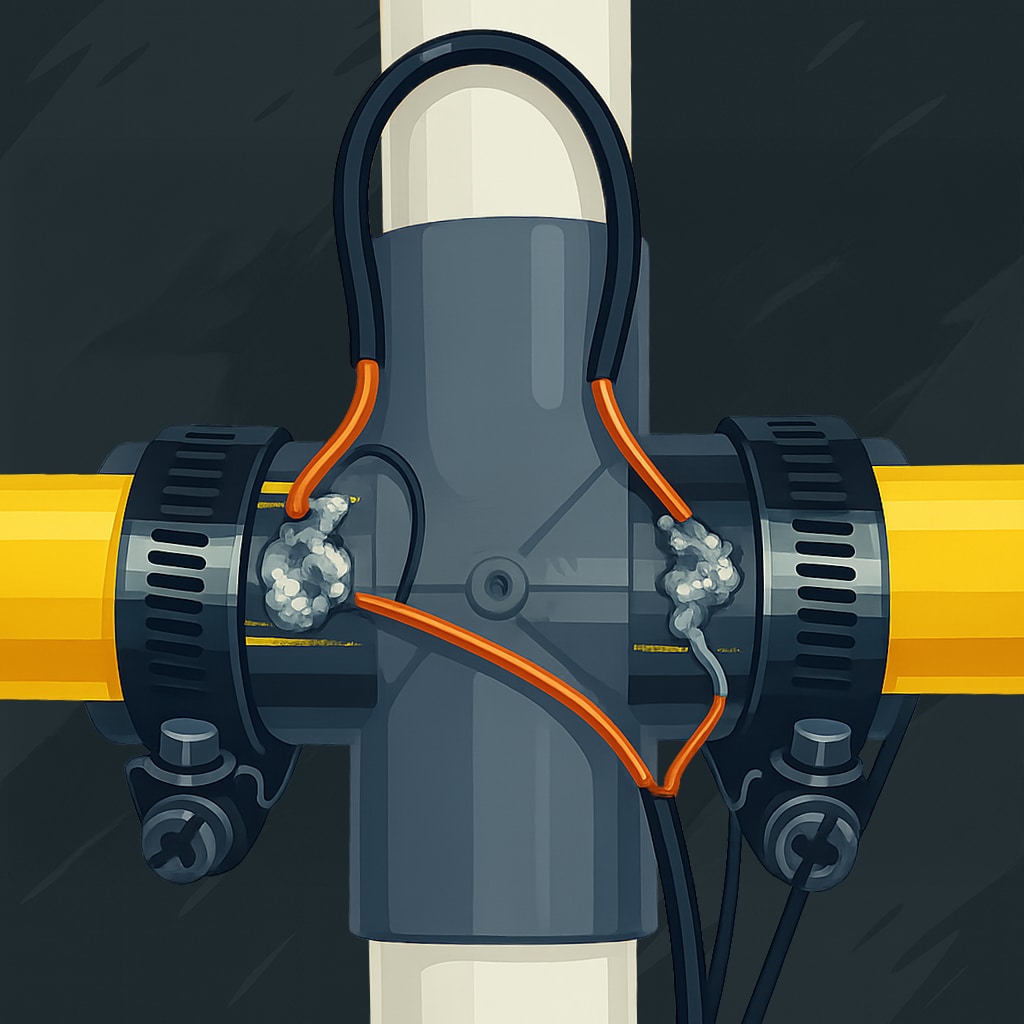

Step 3: Solder the Feedpoint Connections

Begin by tinning the sanded ends of the driven elements. Heat your soldering iron and apply a small amount of solder to each exposed spot on the tape measure. These pads will serve as soldering points for your wire connections.

Next, prepare the RG-58 coax cable by stripping back the insulation to separate the center conductor from the shielding.

• Solder the center conductor to one driven element.

• Solder the shield to the opposite element.

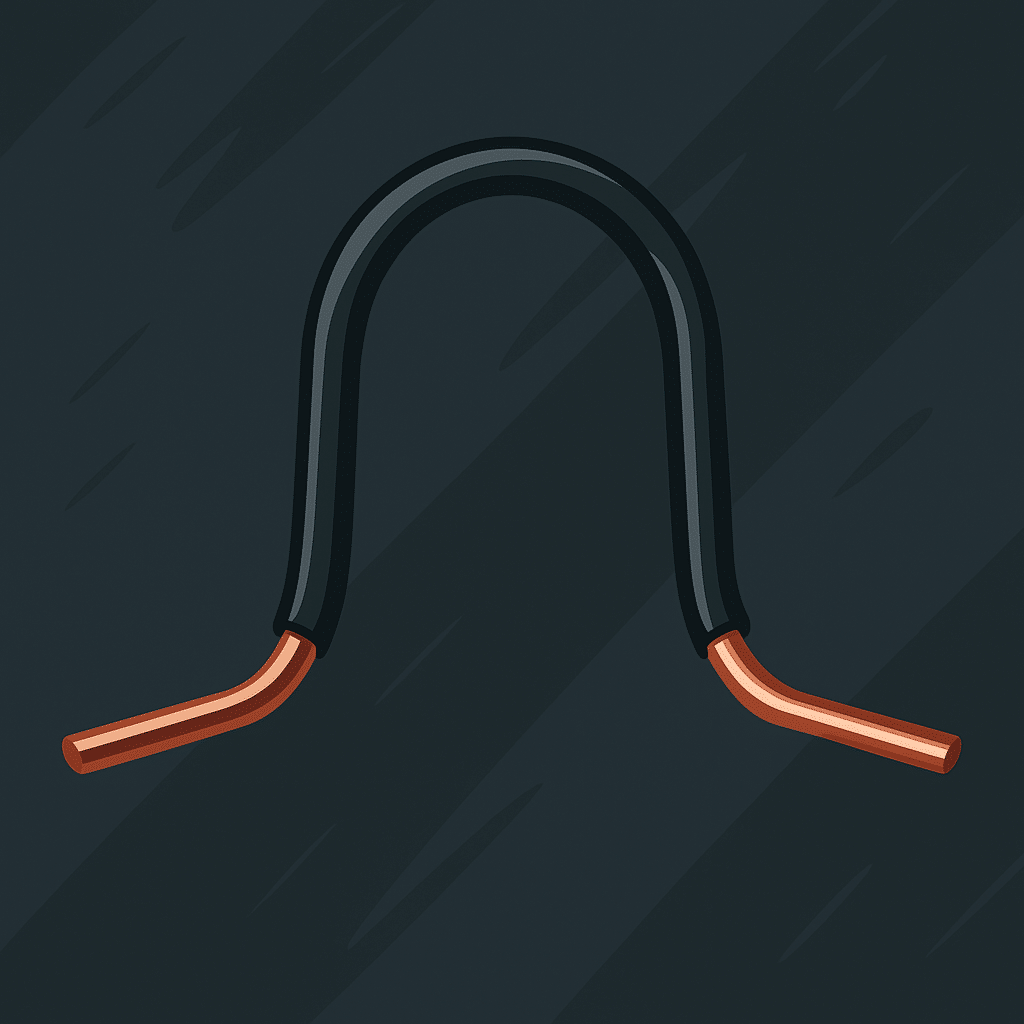

Then, strip the 5-inch wire and solder each end to the two driven elements—this forms the other half of the dipole connection.

🔧 Optional: For easier handling or mounting, you can attach an extra piece of PVC pipe with an elbow fitting to the rear of the boom.
You may also choose to leave the PVC joints unglued so the antenna can be disassembled for transport or storage.

The post How To Build a Tape Measure Yagi Antenna appeared first on Ham Radio Prep.

Can You Operate HF Radio from an Apartment?

Yes, you can operate HF radio from your apartment! Even if your space is limited, you can still set up an efficient HF station. The key to success lies in choosing the right antenna for your apartment. By selecting compact, efficient options, you can enjoy HF communications without the need for a large outdoor space.

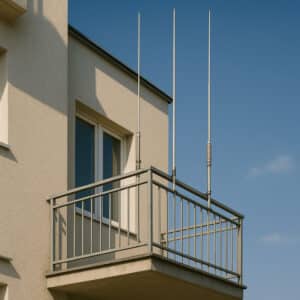

Vertical Antennas on a Balcony

If you have a balcony, a vertical antenna is a great option. You can easily mount these antennas on your balcony railing or wall. Vertical antennas are perfect for HF operations, and they take up minimal space while delivering excellent performance. They offer a simple solution for apartment dwellers eager to get on the air.

Dipole Antennas Inside the Apartment

If your apartment doesn’t have a balcony, you can still make HF radio work with a dipole antenna. Simply string a horizontal dipole across a room or install a vertical dipole against a wall. If you have access to an attic, that’s another great place to mount your dipole for better performance.

These antennas are discreet, and you can easily hide them when not in use. Antenna tuners will help match the impedance, enhancing your transmission and reception quality.

Compact Indoor Antennas for Small Spaces

If space is really tight, consider using magnetic loop antennas or small vertical antennas. These are designed for HF radio operations in small spaces. You can set them up near windows or place them in corners where they won’t be in the way. Magnetic loop antennas are portable, effective, and simple to store.

These antennas are perfect for apartment setups where space is limited, and they can be hidden when not in use. You can maintain a clean, clutter-free apartment while still making HF contacts.

Apartment HF Antenna Safety: Protect Your Neighbors! 📡

When setting up your HF station in an apartment, you must prioritize RF exposure safety. HF antennas emit radio frequency (RF) radiation, so it’s essential to ensure you’re not exposing your neighbors to harmful levels of radiation.

How Close Can Your Antenna Be to Others?

If you live in a multi-unit building, such as a condo or apartment, ensure that your HF antenna is placed at a safe distance from others. RF exposure can affect your neighbors if the antenna is too close. It’s vital to consider the antenna’s placement to prevent this risk.

To ensure you’re within the safety limits, research RF exposure guidelines and make sure your antenna is installed correctly.

Getting Started with HF: Essential Resources for Beginners

If you’re new to HF radio and want to dive deeper into high-frequency operations, check out our detailed guide on HF Ham Radios for Beginners. This guide covers the basics of getting started with HF communications, including choosing the right equipment, understanding HF bands, and more.

Final Thoughts: Can You Operate HF in an Apartment? Absolutely!

Operating HF radio from an apartment is totally possible. Whether you use a vertical antenna on your balcony, a dipole antenna inside, or a compact indoor antenna, there are options that will help you get on the air.

Always keep RF safety in mind to avoid exposing your neighbors to harmful radiation. Once you’ve set up your antenna and followed safety protocols, you’ll be ready to enjoy long-range communications from your apartment.

Start Your Ham Radio Journey Today with Ham Radio Prep

To operate your HF radio station, you’ll need to earn your FCC amateur radio license. Ham Radio Prep has helped over 60,000 students pass their exams and get licensed, and we can help you too!

🎓 Start your free lesson today at HamRadioPrep.com and get licensed to operate your HF radio from your apartment!

The post Operating HF Radio in an Apartment: Tips & Safety appeared first on Ham Radio Prep.

The Problem: Jim’s Antenna Wasn’t Performing Well

A few months ago, Jim noticed that his stepper antenna, mounted at the top of his 35-foot tower, wasn’t performing as expected. Despite everything looking fine from the ground, the antenna wasn’t delivering the expected signal. Jim knew it was time to investigate further and decided that the solution lay in going up to the antenna.

Troubleshooting the Setup

Jim started by checking the connections between his radio and tower. After ensuring everything was properly connected, he tested the coaxial cable running from the radio to the tower. Everything appeared fine, with a 1:1 SWR at 50Ω, indicating that the problem must be further up at the antenna itself.

The Climb Begins: The Tower Setup and Safety

Realizing the issue likely lay with the coaxial cable at the top of the tower, Jim called upon James, a seasoned tower expert, to help replace it. The plan was to replace the coax running between the lightning arrestor and the antenna. Since the antenna rotates periodically, the coaxial cable can become a weak point over time, resulting in damage.

Before climbing, Jim reviewed some critical safety procedures. The most important was the three-point rule, which dictates that a climber should always keep three points of contact with the tower for stability. Whether it’s two feet and one hand or two hands and one foot, following this rule helps ensure a secure and safe climb.

The tower stands 30 feet tall, and with the 5-foot mast, the antenna’s total height reaches about 35 feet—an impressive height when you’re working on it.

Replacing the Coax and Making Adjustments

As James reached the top of the tower, he inspected the lightning arrestor and coaxial cable. It quickly became clear that the coaxial cable had deteriorated, most likely due to the constant movement of the rotating antenna. This was the cause of the poor signal.

James proceeded to replace the damaged cable, ensuring everything was tightly secured. After reconnecting everything to the lightning arrestor, they tested the antenna once again.

The Reward: A Successful Fix and Better Performance

After replacing the coax, Jim tested the antenna again, and the results were immediate. The signal strength significantly improved, and the antenna was back to full functionality.

The most rewarding part for Jim was the ability to make clear radio contacts once again. The fix not only resolved the issue but proved the value of maintaining and regularly checking his ham radio setup.

Lessons Learned and Final Thoughts

One of the key takeaways from this experience for Jim was the importance of regular maintenance and troubleshooting. When you’re a tower owner, issues will arise, but resolving them early can save time and effort in the long run.

Looking ahead, Jim is considering installing a tilt-down tower, which would allow him to lower the antenna to a more accessible height for future maintenance and repairs.

Final Word: A Tower Climb and Antenna Fix Completed

Thanks to James’s help and Jim’s persistence, the antenna is now working like new. The experience reinforced the importance of safety, maintenance, and teamwork when dealing with tower-based repairs.

Thanks to their efforts, Jim can once again enjoy reliable communication with his ham radio station.

For a deeper dive into the different types of ham radio antennas, check out our comprehensive guide on ham radio antennas, which offers detailed recommendations and insights on various antenna types.

Get Your Ham Radio License Today

If you’re new to ham radio or need to get licensed, start your journey with Ham Radio Prep. Over 60,000 students have earned their FCC amateur radio licenses with our help.

🎓 Start your free lesson today at HamRadioPrep.com and join the ham radio community!

The post Fixing an Antenna at the Top of a 35-Foot Tower: A Ham Radio Adventure appeared first on Ham Radio Prep.

In this post, we’ll break down the highlights of Elecraft radios, their top-of-the-line features, and how they can enhance your ham radio experience.

Why Choose Elecraft? A Legacy of Innovation and Quality

Founded in 1999, Elecraft has quickly earned a reputation as a leader in designing high-performance ham radios that cater to both novice and seasoned operators. Whether you’re a beginner eager to learn the ropes or an experienced ham looking for cutting-edge technology, Elecraft’s range includes:

• State-of-the-art SDR transceivers

• Compact portable ham radios for field use

• High-powered amplifiers for long-distance communication

• Customizable radios for DIY enthusiasts

Elecraft has earned its place as a trusted brand by delivering reliable, innovative, and user-centered ham radios. Their commitment to quality is why Elecraft remains a preferred choice among operators at every level.

Discover Elecraft’s Top Radios and Amplifiers

Elecraft K4: Unmatched Performance in SDR Transceivers

For those seeking the best in SDR technology, the Elecraft K4 offers outstanding performance, ease of use, and features that cater to both beginners and expert needs.

Why Choose the K4?

• Direct-sampling SDR transceiver for exceptional clarity and control

• Touchscreen interface for easy navigation and setup

• Remote operation via the internet for flexibility and convenience

• HDMI monitor support for an immersive operating experience

The K4 is ideal for those who want an SDR transceiver that combines advanced features with user-friendly functionality.

Easy Remote Operation with the K4-Zero Front Panel

One standout feature of Elecraft radios is the ability to control them remotely. With the K4-Zero, users can manage the K4 or other compatible Elecraft radios from anywhere. Simply use a laptop, mobile app, or a simplified front panel for easy operation.

Power Up with Elecraft’s Linear Amplifiers

Elecraft’s KPA1500 and KPA500 linear amplifiers are designed for operators who need maximum power output. These amplifiers are ideal for breaking through interference and reaching long distances, delivering up to 1500 watts of clean, reliable power.

Features include:

• Automatic band switching to adjust power on different frequencies

• Built-in auto tuner for quick and easy tuning

• PIN diode switching for silent operation

Whether you’re participating in contests or working long-distance contacts, these amplifiers provide the power you need with quiet, efficient performance.

Best Portable Ham Radios: Elecraft’s KX Series

When it comes to portable ham radios, Elecraft is at the forefront with models like the KX2 and KX3, both ideal for POTA (Parks on the Air), SOTA (Summits on the Air), or any situation where portability is essential.

Elecraft KX1

• Compact CW-only radio for lightweight operations

• Ideal for those learning Morse code or needing a small portable setup

Elecraft KX2

• Full-featured HF transceiver that works across multiple bands

• Built-in battery and auto tuner for easy portability

Elecraft KX3

• Expands the KX2’s capabilities with extra bands and options for even more versatility

With their compact design and high-performance features, the KX series is among the best portable ham radios for outdoor operations.

DIY Builders: The Elecraft K2 Radio Kit

For those who enjoy a DIY challenge, the Elecraft K2 kit is a great project. This build-it-yourself radio allows you to fully customize your transceiver and gain hands-on experience with ham radio technology.

• Learn radio basics while constructing a high-performance radio

• Optional upgrades for advanced features like additional filters and modes

• Hands-on learning that provides a deep understanding of the inner workings of ham radios

The K2 is the perfect choice for those interested in getting involved in the technical side of the hobby.

Elecraft Radios: The Best Choice for All Levels of Ham Operators

Whether you’re looking for your first ham radio or you’re ready to upgrade to an SDR transceiver, Elecraft offers a broad range of radios and amplifiers designed to meet every need:

• Best ham radio for beginners: Simple yet powerful radios like the KX2

• Portable ham radios: Light and durable options for field operations

• Advanced SDR transceivers: For serious operators who want the best in technology and performance

• High-power amplifiers: Enhance your signal for contesting or DX

With Elecraft, you’re investing in durable, high-quality equipment that’s built for both casual and competitive operators.

Start Your Ham Radio Journey Today with Ham Radio Prep

To get the most out of Elecraft radios, you’ll need to earn your FCC amateur radio license. At Ham Radio Prep, we’ve helped over 60,000 students pass their exams and get licensed.

🎓 Start your free lesson today at HamRadioPrep.com and get licensed to operate your own Elecraft radio!

Looking for the best ham radio for beginners, SDR transceivers, or portable ham radios? Check out Elecraft’s top radios, amplifiers, and DIY kits perfect for every ham radio operator!

The post Discover the Best Elecraft Radios for Beginners and Experts appeared first on Ham Radio Prep.

On March 12, 2025, the Federal Communications Commission (FCC) released a public notice titled “Delete, Delete, Delete.” While the name may sound ominous, here’s the good news—no immediate changes have been made to amateur radio regulations.

But there’s more to this story.

The FCC is actively seeking public feedback on a broad set of regulatory reviews, covering everything from telecommunications and public airwaves to amateur radio policy. This notice could lay the groundwork for future changes, so it’s important for the ham radio community to stay informed and involved.

Key Areas of FCC Review

The FCC outlined several focal points for potential reform:

• Cost considerations

• Shifts in the communications marketplace

• Regulatory barriers to entry

• Broader changes to the regulatory framework

While these seem broad, many are focused on the economic value of spectrum, and that’s where amateur radio could be affected.

How the “Delete, Delete, Delete” Agenda Could Affect Ham Radio

Let’s dive into the most significant areas of interest.

1. Spectrum Reallocation Risk

The amateur radio service exists within a competitive marketplace for spectrum. Frequencies such as the 2-meter band (144–148 MHz) are allocated to hams, but some segments—like 900 MHz and 220 MHz—are highly attractive to commercial industries.

Key Points:

• Wireless carriers have spent billions acquiring spectrum in FCC auctions.

• In 2024 alone, a spectrum auction raised nearly $500 million.

• Past examples include the auction of adjacent 220 MHz space for $2 million in 1998.

• HF spectrum could draw attention from financial firms interested in high-frequency trading (HFT).

🚨 Most at risk: Segments that could be monetized, especially if public pressure or government funding needs increase.

2. Potential Licensing Changes

The current FCC licensing system for amateur radio is already streamlined and efficient:

• Online application and modification processes

• Volunteer Examiner Coordinators (VECs) handle much of the legwork

• $35 application fee introduced in 2022 for new licenses, renewals, and vanity calls

Could this change?

• Lifetime licenses or 20-year terms may be on the table

• Major overhauls? Unlikely, due to the system’s efficiency and affordability

💡 At just $3.50/year, a ham license still costs less than your favorite latte.

3. Is the FCC Planning to End Amateur Radio?

It’s a fair question—but extremely unlikely. Here’s why:

• Emergency Preparedness: With over 700,000 licensed operators, ham radio is a critical backup during natural disasters. One example? The Mount Mitchell repeater’s role during Hurricane Helene.

• Global Coordination: The FCC aligns U.S. band plans with the International Telecommunication Union (ITU). Abrupt changes could cause international conflicts.

• Political Advocacy: The amateur radio community includes many civically engaged individuals, and support from legislators has been consistent.

👍 Verdict: Amateur radio isn’t going anywhere, but we may lose some regulatory advantages.

4. Antenna Regulation Under Threat

One area that may be on the chopping block is PRB-1, an FCC rule protecting hams from unfair local zoning restrictions compared to commercial towers.

• If eliminated, state and local governments could gain more control—potentially limiting antenna installation in residential areas.

• HOA restrictions? Unfortunately, the FCC isn’t likely to push back on them as part of this agenda.

📌 Tip: If you’re moving to a new area, check HOA rules before buying property!

Recap: What the FCC’s Notice Means for You

Let’s summarize what you need to know:

✅ Spectrum could be reallocated – The FCC has a strong incentive to auction off valuable frequencies, especially as it targets $16 billion in Treasury contributions by 2025.

✅ Licensing might be modernized – We could see extended license terms or even lifetime licenses, but no drastic changes.

✅ Amateur radio is here to stay – Don’t expect the service to disappear, but stay alert for shifts in antenna rights and spectrum usage.

What Can You Do?

Your voice matters. Here’s how to take action:

1. Submit Feedback to the FCC
   Visit FCC.gov and file your comments under Proceeding Number 25-133.

2. Contact Your Representatives
   Your local legislators influence FCC decisions. Share your perspective with them.

3. Stay Informed with Ham Radio Prep
   We’ll keep you updated as the situation evolves.

📲 Follow us on YouTube, Facebook, and Instagram.

Ready to Get Licensed?

Now’s the perfect time to earn your amateur radio license or upgrade to the next level. Our proven courses make it fast, fun, and easy.

🎓 Start your journey today at HamRadioPrep.com

The post FCC’s “Delete, Delete, Delete” – Is Ham Radio at Risk? appeared first on Ham Radio Prep.

Whether you’re just starting out or upgrading to something elegant and precise, Begali Keys might just have the perfect fit for you.

Why Morse Code Key Choice Matters

When you’re first getting into CW, having the right equipment is essential—not just for performance but also for motivation. A well-built key can make practice more enjoyable and help you learn with better accuracy.

Straight Key vs. Paddle

Source: https://www.youtube.com/watch?app=desktop&v=78VXLVZckIQ&t=423s

The first decision is choosing between:

• Straight Keys: Great for beginners learning timing and spacing manually.

• Paddles: Often preferred for speed and ease, especially when paired with an electronic keyer.

Many clubs recommend starting with a straight key to learn the fundamentals. However, if you’re aiming for faster proficiency, a paddle might be a better long-term investment.

Exploring Begali’s Morse Code Keys

Begali, a renowned Italian manufacturer, crafts some of the most elegant and high-performance CW keys on the market. Here’s what we discovered at their booth:

1. Types of Straight Keys

Begali offers several types of straight keys, each with a unique mechanism:

• Spring Mechanism: Classic design with good tactile feedback.

• Blade Mechanism: Offers a very smooth and precise action.

• Magnet-Controlled Mechanism: Adjustable tension for personalized control and reduced fatigue.

All are engineered for long-term use and durability, with models weighing up to 2 kilograms for solid, non-slip operation.

2. Convertible Paddles: Mono & Dual

For those ready to dive into paddles, Begali offers:

• Mono Lever Models: A single movement paddle—simple and effective.

• Dual Lever Paddles: Allow for squeeze keying, enabling faster CW and better rhythm.

You can even find hybrid models that convert between single and dual lever styles—like the Janus, named after the Roman god with two faces, perfect for versatility.

Performance Meets Art: The Look and Feel of a Begali Key

What makes Begali stand out isn’t just performance—it’s also style and craftsmanship.

• Sakote Finish: A ceramic coating used by firearms manufacturers, this finish resists fingerprints and feels velvet-smooth.

• Solid Gold Contacts: Available for superior conductivity and premium feel.

• Custom Engravings: Add your callsign or logo to personalize your key.

• Unique Textures: From polished brass to marbled designs, no two keys look exactly alike.

As one of our team said in the video, “When you think of beautiful Morse code keys, you think of Begali.”

Our Top Pick for Beginners

After exploring the full range, we settled on the Begali Simplex Pro, a spring-return paddle with a white and gold finish—elegant, durable, and designed to last a lifetime.

Why we chose it:

• Lightweight and portable (about 2.5 lbs)

• Easy to maintain and adjust

• Available with multiple finger piece options (solid, perforated, red, black, etc.)

• Affordable at around $220 with included dust cover

It’s a fantastic all-purpose key for home use, portable ops like POTA, and long-term learning.

Final Tips for Choosing Your First CW Key

1. Decide based on your goals: Learning fundamentals? Go for a straight key. Want to progress quickly? Try a paddle.

2. Think about where you’ll operate: Portable ops? Look for lightweight, detachable models.

3. Choose quality: A well-built key not only performs better—it holds its value and makes learning enjoyable.

4. Don’t overlook the extras: Dust covers, finger pieces, finishes—they all matter.

Special thanks to Bruna and the Begali team for their time and expertise. Whether you’re buying your first key or adding to your collection, Begali Keys are truly a work of art.

The post Choosing Your First Morse Code Key: A CW Beginner’s Guide to Begali Keys appeared first on Ham Radio Prep.

Here’s a guide to 10 simple things you should do as a newly licensed ham to get active and start operating.

1. Buy a Handheld Ham Radio

If you haven’t already purchased a handheld ham radio (HT), now is the time! A handheld radio is an excellent way to get started, and you don’t need to break the bank. Affordable options like the Baofeng UV-5R or Yaesu FT-65R are great entry-level choices. As you explore different parts of the hobby, you can always upgrade later. If you need help deciding, check out our guide to the Top Five Handheld Radios for beginners.

2. Make Your First Contact on Simplex

One of the biggest obstacles for new hams is making that first contact. It’s actually easier than you think! Just find a fellow ham and program both of your handheld radios to the same frequency. Press the push-to-talk (PTT) button, say your call sign, and start chatting. Remember to follow FCC rules, which require you to identify with your call sign at the beginning, every 10 minutes, and at the end of your transmission.

Need help programming your radio or picking the right frequency? Check out our step-by-step guide to making your first contact.

3. Start Logging Contacts

A great way to track your progress is by logging your contacts. The World Radio League offers a free online logbook and mobile app where you can record your first contact and every one that follows.

Logging contacts becomes even more rewarding when you start operating on HF, POTA (Parks on the Air), and contesting. The World Radio League also helps you connect with other hams, find nearby POTA and SOTA (Summits on the Air) sites, search call signs, and participate in community discussions.

4. Get a Band Plan

Before making more contacts, you need to know which frequencies you’re allowed to use based on your license class. A band plan will show your privileges and which modes (voice, CW, digital) you can use.

As a technician, most of your privileges are on VHF/UHF, which are great for local communication. However, you also have limited HF privileges on the 10-meter band, which can let you make long-range contacts when conditions are right.

Download a free band plan PDF or grab a printed poster to keep as a quick reference.

5. Make a Contact on a Local Repeater

Handheld radios typically have a range of a few miles, but repeaters extend that range significantly. A repeater is a powerful transmitter that receives your signal and rebroadcasts it over a much larger area.

To get started:

• Use an online repeater directory to find one near you, such as RepeaterBook.
• Program your radio with the repeater’s receive frequency, offset, and CTCSS tone.
• Key up the repeater, announce your call sign, and say “monitoring” to see if anyone responds.

Many repeaters also have scheduled nets, where hams check in at specific times. These are great for practice and meeting other local operators.

6. Join a Local Ham Radio Club

Ham radio is all about community, and joining a club can help you learn faster. If you took your license exam in person, stay in touch with that group or find a club near you.

Club members can help you:

• Learn to program your radio.
• Get involved in emergency communications.
• Participate in local nets and public service events.

Check out World Radio League’s “Find Members Near Me” feature to connect with hams in your area and join the community chat.

7. Install a Mobile Ham Radio in Your Car

A mobile radio in your car provides more power and better range than a handheld radio, making it perfect for road trips, off-roading, and emergency preparedness.

Most mobile radios put out 25+ watts, compared to a handheld’s 5-8 watts, giving you significantly more range. With a properly mounted antenna, you can easily communicate over 25+ miles.

Consider programming your mobile radio with Simplex frequencies, local repeaters, and emergency channels for maximum usability.

8. Upgrade to the General License

If you want to talk worldwide, you’ll need access to HF frequencies. Upgrading to a General Class license unlocks most HF bands, allowing for long-range communication without repeaters, internet, or cell towers.

HF opens up exciting opportunities, including:

• DXing (long-distance communication).
• Parks on the Air and contesting.
• Emergency backup communication for disasters.

The General Class exam isn’t much harder than the Technician exam. Use the Ham Radio Prep course to study with video lessons, quizzes, and practice tests.

9. Start Using HF as a Technician

Even Technicians have some HF privileges! The 10-meter band (28.300-28.500 MHz) is available for SSB (voice) communication, and when conditions are right, you can make contacts across the world.

If you’re ready to try HF:

• Get a beginner HF radio (like the Icom IC-7300).
• Set up an antenna (you can build or buy one). We even have a guide on how to build an HF dipole antenna!
• Try digital modes like FT8, which work well with low power.

Check out our guides on affordable HF radios and antenna setups to get started.

10. Operate on the Magic 6-Meter Band

The 6-meter band (50-54 MHz) is called the Magic Band because it exhibits characteristics of both VHF and HF. On some days, you may only make contacts a few miles away, while on others, you could reach 1,500+ miles thanks to atmospheric propagation!

Exciting propagation modes on 6 meters include:

• Sporadic E (Es) – Signals bounce off charged layers in the atmosphere.
• Tropospheric ducting – Signals travel long distances via temperature inversions.
• Earth-Moon-Earth (EME) bounce – Contact other hams by bouncing signals off the moon!

Many HF radios include 6-meter support, and using a directional antenna (Yagi) can improve performance significantly.

Bonus: Try Satellite Operations

Did you know you can use your Technician License to talk through ham radio satellites? There are dozens of satellites that function as repeaters in space, allowing you to make contacts hundreds of miles away.

To get started:

• Use a handheld radio and a Yagi antenna.
• Find satellite pass schedules online.
• Program your radio just like a repeater.

Operating satellites is a fun challenge that helps you improve your skills and experiment with new aspects of the hobby.

Get on the Air and Start Learning!

Your ham radio license is just the beginning! The real learning starts when you get on the air, make contacts, and explore different parts of the hobby. Whether you’re making your first Simplex contact or bouncing signals off the moon, ham radio offers endless possibilities.

Want to accelerate your learning? Check out the Ham Radio Basics course from Ham Radio Prep and start mastering the hobby today!

The post What to do after you get your Technician License appeared first on Ham Radio Prep.

When obtaining a ham radio license in the United States, the FCC assigns a ham radio call sign sequentially from an available pool. While functional, these assigned call signs may lack the personal touch that many operators desire. Applying for a vanity call sign allows ham radio enthusiasts to personalize their call signs, whether for personal identity, legacy, or operational benefits.

This guide will provide a step-by-step process for applying for a vanity call sign, explore why it may be worthwhile, and cover tips for choosing the best call sign for your needs.

What Is a Vanity Call Sign?

A vanity call sign is a custom call sign selected by a licensed ham radio operator. Unlike the default call sign assigned by the FCC, vanity call signs allow operators to incorporate personal elements, such as initials, meaningful words, or affiliations.

Both individual operators and ham radio clubs are eligible to apply for vanity call signs. Similar to a personalized license plate, vanity call signs serve as a way to stand out and make a statement on the airwaves.

Why Operators Choose Vanity Call Signs

There are many reasons why ham radio operators might consider applying for a vanity call sign:

1. Personalization:
   Vanity call signs can reflect your initials, hobbies, or affiliations. For example, if you’re part of a ham radio club, you might want a call sign that incorporates the club’s name or acronym.
2. Legacy and Tribute:
   Many operators choose vanity call signs to honor a family member or friend who was a ham radio operator, especially if they are now a “silent key” (a term used to describe deceased operators).
3. Competitive Advantage:
   Shorter call signs or those that are phonetically clear can give contesters a significant edge during competitions.
4. Enhanced Communication:
   Call signs that are easy to spell or transmit in CW (Morse code) help streamline communication, especially in high-traffic or noisy environments.

Eligibility for Vanity Call Signs

The format of a vanity call sign depends on the operator’s license class:

• Technician Class (Level 1): Eligible for 2×3 (e.g., KN4NEH) or 1×3 (e.g., K1ABC) call signs.
• General Class (Level 2): Access to the same options as Technician but with more availability.
• Amateur Extra Class (Level 3): Can apply for shorter formats, such as 1×2 (e.g., N1ET) or 2×1 (e.g., W1A). Amateur Extra licensees also gain access to prefixes starting with “A.”

Preparing to Apply for a Vanity Call Sign

Choosing the Right Call Sign

When selecting a vanity call sign, consider factors such as phonetics, CW efficiency, and availability. Here are some tips to guide your selection:

1. Think Phonetically:
   A call sign that is easy to say phonetically can reduce miscommunication. For example, “K1ABC” is more straightforward than “K1JQ.”
2. Check CW Weight:
   CW weight refers to how long it takes to transmit a call sign in Morse code. Shorter call signs, like “N1ET,” are quicker to send than longer ones, even within the same format. Use tools like the FISTS CW Weight Calculator to test potential options.
3. Search for Availability:
   Websites like RadioQTH.net allow users to check the availability of specific call signs.
4. Create a Preference List:
   Popular formats, such as 1×2 and 2×1, often have multiple applicants. To improve your chances, prepare a list of several call signs ranked by preference.

How to Apply for a Vanity Call Sign

Once you’ve selected your preferred call signs, it’s time to start the application process. Follow these steps:

1. Log in to the FCC License Manager:
   Visit the FCC License Manager website and log in using your credentials. If you’re a new user, create an account to access the portal.
2. Select the Application Type:
   • Choose Request Vanity Call Sign to apply for a new call sign based on personal preference.
   • If reclaiming a silent key’s call sign or a previously held call sign, select the relevant option.
3. Submit Call Sign Preferences:
   Enter up to 25 call signs in order of preference. This increases your chances of securing a call sign without needing to file another application.
4. Pay the Application Fee:
   Use the FCC’s CORES system to pay the $35 fee. Payments can be made via credit card, debit card, or bank transfer.
5. Monitor Your Application:
   Applications typically take 18 days to process. You can track the status in the FCC License Manager portal.

After Approval

Once your vanity call sign is approved, it will appear in the FCC database. At this point:

• Begin using the new call sign for all communications.
• Update your call sign in logbooks and online systems. For example, users of the World Radio League logbook should update their profiles to reflect the change.

FAQs About Vanity Call Signs

1. Can operators apply for multiple vanity call signs?
Yes, but each application requires a $35 fee.

2. Can a previously held call sign be reclaimed?
Yes, provided the call sign is still within the two-year reservation period after cancellation or change.

3. Is there a way to avoid the $35 fee?
Operators upgrading their license class (e.g., to General or Extra) can request a new sequential call sign at no extra cost during the upgrade process. This also applies during license renewal every 10 years.

4. How long does it take for the FCC to process a vanity call sign application?
The FCC typically processes applications within 18 days.

Conclusion

Applying for a vanity call sign is a rewarding process that allows operators to personalize their ham radio experience, honor loved ones, or gain a competitive edge. With careful planning and the right resources, securing the perfect call sign is a straightforward process.

For those looking to upgrade their license or learn more about ham radio, the Ham Radio Prep provides comprehensive lessons, quizzes, and practice tests. It’s never been easier to prepare for your next exam.

The post How to Get a Vanity Call Sign for Ham Radio appeared first on Ham Radio Prep.

Ham radio is deeply intertwined with the evolution of communication technologies, and one remarkable device in this lineage is the teletype machine. These mechanical marvels once served as the backbone of digital communication before the advent of modern computers and email. Recently, we had the privilege of exploring this fascinating history with Nick, K0NCQ, and Steve Garrison, N4TTY, both of whom have hands-on experience with teletypes.

The Model 28 Teletype

Nick showcased his fully restored Model 28 teletype, a machine that epitomizes ham radio’s digital roots. Manufactured and widely used in the 1950s, this machine represents a time when communication relied on ingenuity and mechanical precision. According to Steve, who trained on teletypes during his time in the U.S. Air Force from 1966 to 1970, these machines were essential for military communications, facilitating the exchange of information across the globe.

A Glimpse into History

The teletype’s role extended beyond the military. Steve explained that these machines were used for telegrams, with messages printed on strips of paper. These strips would be attached to forms and delivered to recipients by messengers, often on bicycles. Teletypes like the Model 28 remained in use until the 1980s when computers and printers began to dominate the communication landscape.

The Origin of the Teletype Corporation

The history of teletype machines involves two key figures: Kleinschmidt and Krum. Initially competitors, they eventually joined forces to form the Teletype Corporation, with financial backing from Morton Salt’s founder. Their collaboration laid the foundation for the machines that revolutionized communication during the 20th century.

From Wired to Wireless Communication

One of the pivotal advancements in teletype technology was its transition from wired communication to radio teletype (RTTY). Steve explained that teletypes were connected to radios via terminal node controllers (TNCs). These devices converted digital signals into radio signals, enabling long-distance communication, such as across oceans or from ships at sea. This innovation was crucial for applications where physical wires were impractical.

RTTY used Baudot code, a five-bit system named after its inventor, Émile Baudot. With only 32 possible characters, the system relied on uppercase letters to maximize efficiency. Steve shared how this limitation shaped the way messages were formatted and transmitted.

Keeping Teletypes Alive Today

For those passionate about vintage technology, there are still ways to engage with teletypes. Steve mentioned the annual RTTY contests, where some enthusiasts use actual teletype machines rather than modern computers. He personally participated in one such contest using his Model 28 teletype connected to his Flex 6700 radio.

Restoring these machines has also become a rewarding hobby. Communities like GreenKeys bring together enthusiasts from around the world who share tips, troubleshoot issues, and preserve these historical devices. GreenKeys—an email-based group—is an invaluable resource for anyone interested in keeping teletypes operational.

Teletypes and Modern Feeds

Interestingly, teletypes can still be used to receive real-time news feeds via the internet. Steve described how ITTY (Internet Teletype) provides a modern twist on the “rip and read” news process once used in radio stations. Messages are printed directly on the teletype, offering a nostalgic yet functional way to consume information.

A Testament to Engineering Ingenuity

What makes teletypes so remarkable is that they were designed entirely by hand, without the aid of computers. This speaks to the ingenuity of their creators and the durability of their designs. Steve’s ability to recall and apply his military training to repair teletypes highlights the timeless appeal of these machines.

Conclusion

Teletype machines are more than relics of the past; they’re a testament to the creativity and innovation that shaped modern communication. Whether you’re a ham radio enthusiast, a history buff, or someone who loves vintage tech, exploring teletypes offers a unique window into the evolution of digital communication.

At Ham Radio Prep, we celebrate the rich history of amateur radio while helping newcomers earn their FCC licenses. Join the thousands of students who’ve succeeded with us—visit www.hamradioprep.com and try a free lesson today!

The post Origins of RTTY: A Piece of Ham Radio History appeared first on Ham Radio Prep.

Ham radio, or amateur radio, isn’t just a hobby—it’s a versatile tool for communication, innovation, and global connection. Whether you’re speaking with astronauts on the International Space Station, coordinating emergency services during a crisis, or experimenting with cutting-edge radio technology, a ham radio license opens doors to a world of opportunities. This guide dives deep into the most exciting and practical ways to use your ham radio license.

1. Local Communications with Handheld Radios

A handheld radio, often referred to as an HT (handy talkie), serves as an entry point for many ham radio enthusiasts. Compact and affordable, these radios offer a gateway to local communication without reliance on cellular networks or the internet.

Imagine being on a hiking trip or at a remote campsite. With your HT in hand, you can easily:

• Communicate with nearby friends and family using Simplex.
• Monitor local repeaters to extend your communication range.
• Tune into National Weather Service broadcasts to stay updated on weather conditions.

For better performance, upgrading the standard rubber duck antenna is a must. Brands like Yaesu and Icom provide reliable entry-level radios, making them a favorite choice among beginners.

If you need help in deciding which handheld device to purchase, we have researched the available options and prepared a guide on The Best Handheld Ham Radios.

If you wish to learn how to use your handheld to make your simplex contact, check out our free guide to make your first contact.

2. Make Contacts on a Local Repeater

Repeaters act as signal relays, receiving your transmission and rebroadcasting it at a higher power. These systems are often located on hilltops or tall towers, vastly expanding your communication range.

For example, during emergencies or public events, repeaters ensure seamless communication between volunteers and organizers. Here’s how repeaters enhance your ham radio experience:

• Participate in scheduled nets for group communication.
• Access regional communication networks.
• Maintain reliable contact during power outages with solar-powered repeaters.

Learning to program your radio for repeater use might seem complex initially, but it’s an essential skill that quickly becomes second nature. Check out our Step-by-Step Guide to Using Ham Radio Repeaters.

3. Start Operating On HF

So handhelds can go 5 miles on their own on a good day.  Add in repeaters, and you’ve extended your range to 30-50 miles, or maybe even more.

But let’s say you want to talk across the US, or even the world, with your own radio and equipment. HF (High Frequency) operation is where ham radio truly becomes global.

Unlike handheld radios limited by line-of-sight, HF signals bounce off the Earth’s ionosphere, allowing worldwide communication.

With each level of ham radio license you achieve, you get access to more frequency ranges and power capabilities, among other privileges. Upgrading your license to General or Extra Class unlocks access to HF bands. With the right equipment, such as an Icom IC-7300 and a reliable antenna setup, you’ll be able to:

• Communicate with operators across continents.
• Join global nets for discussions and updates.
• Experiment with different antenna configurations to optimize performance.

The thrill of hearing a voice or Morse code signal from halfway around the world is an experience every ham operator cherishes.

If you need assistance in selecting an HF Radio, we have researched the top options and compiled a guide featuring the Top 5 HF Radio choices. Additionally, we have included a guide for the Top 5 Antennas that you can use in conjunction these radios.

To master HF and expedite your learning process, please consider enrolling in our HF Masterclass course, which we have designed to cover the fundamentals of HF communications comprehensively, including making contacts. Additionally, it is essential to log your contacts, and for this, we recommend our logging application, World Radio League.

4. Public Service & Emergency Communications

Ham radio plays an indispensable role during emergencies when traditional communication networks fail. Organizations like ARES (Amateur Radio Emergency Service) and RACES (Radio Amateur Civil Emergency Service) train operators to respond to crises efficiently.

In a disaster scenario, ham radio operators can:

• Relay urgent information to emergency responders.
• Coordinate supply drops and aid distribution.
• Provide real-time updates on infrastructure conditions.

Public service events, like marathons and parades, also offer an excellent opportunity to practice these skills in real-world scenarios. For more information on the crucial role of Ham Radio in emergencies and how you can contribute, please refer to our Emergency Communications guide. For a more comprehensive training and an in-depth exploration of topics ranging from public service communications to personal EmComm plans, enroll in our Emergency Communications 101 course.

5. Going Portable: Parks, Summits & Islands

Portable ham radio operating combines technical skills with outdoor adventure. Programs like Parks on the Air (POTA), Summits on the Air (SOTA), and Islands on the Air (IOTA) offer unique challenges and rewards.

• POTA: Activate a national or state park and log contacts from your portable setup.
• SOTA: Climb to a mountain summit and make radio contacts from elevated terrain.
• IOTA: Travel to a remote island and become a sought-after contact in the global ham radio community.

Each contact made from these unique locations becomes part of an exciting personal logbook.

6. Ham Radio Contests & Awards

Ham radio contests, also known as Radio Sport, are exhilarating events where operators aim to make as many contacts as possible within a specific timeframe.

• Field Day: A global event where operators set up portable stations and simulate emergency communication scenarios.
• State QSO Parties: Contact as many stations in a specific state as possible.
• DX Contests: Make contacts with rare and distant locations.

Many contests come with prestigious awards like the Worked All States (WAS) or DX Century Club (DXCC). Participating is not only fun but also sharpens your operating skills.

7. Installing a Ham Radio in Your Vehicle

A mobile ham radio setup can transform your vehicle into a communication hub, especially during road trips or off-road adventures.

Key components of a mobile station include:

• VHF/UHF Radios: Ideal for short-to-medium-range communication.
• HF Radios: Perfect for long-distance communication while on the move.
• Proper Antenna Installation: Crucial for optimal performance and range.

Whether you’re driving through remote areas or participating in mobile contests, a vehicle-based setup ensures constant connectivity.

One great example is Chris, KI1P, a passionate mobile Amateur Radio Operator we met at Dayton Hamvention. He showcased his amazing EmComm Van. Check out Chris’ interview.

8. Talking via Satellites & the ISS

Ham radio isn’t confined to Earth. Satellites and the Amateur Radio on the International Space Station (ARISS) program provide opportunities for space-based communication.

• LEO Satellites: Low Earth Orbit satellites serve as repeaters.
• ISS Contacts: Scheduled communication sessions with astronauts.
• Backup Communication for ISS: Ham radio acts as a secondary communication system during emergencies.

It’s an unforgettable experience to hear an astronaut’s voice through your radio.

9. Operate Digital & Other Modes

Digital modes bring precision and efficiency to ham radio communication.

• FT8: Ideal for weak signals and long-distance communication.
• Winlink: Enables email-style communication over radio.
• APRS: Share GPS locations and short text messages.

These modes require minimal power and are particularly useful in remote areas or during emergencies.

10. DIY Projects and Experimentation

Ham radio thrives on creativity and experimentation. Enthusiasts build, modify, and innovate to push the boundaries of radio technology.

• Design custom antennas for specific bands.
• Build radios from DIY kits.
• Program microcontrollers for radio automation.
• Launch weather balloons with telemetry equipment.

Every project adds a layer of learning and accomplishment.

Start Your Ham Radio Adventure Today

Ham radio isn’t just about talking on the air—it’s about exploring, experimenting, and building connections. Whether you’re bouncing signals off satellites, aiding in emergencies, or fine-tuning your DIY project, there’s something for everyone.

Ready to begin? Sign up for our courses and start your ham radio journey today.

73, and happy operating!

The post 10 Incredible Things You Can Do With Your Ham Radio License appeared first on Ham Radio Prep.
